Dry Cabinet (ESD safe) for DSLR camera · PCB · SMD


Dehumidifying Dry Storage Cabinet Model IDSC-510

Dehumidifying Dry Storage Cabinets

Complete Range of Humidity Cabinets from 60 ltrs. To 1428 ltrs.

Conforms to IPC/JEDEC J-STD 033C Standards for storing even expensive IC packages.

Available in 5% ~ 50%RH Range

  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*
  • Double Desiccator for fast recovery

Dry Storage Cabinet INFCM-1360E-6

1 ~ 60% RH Dehumidifying Dry Storage Cabinet

Model: INFCM-1360E-6

Humidity range conforms to IPC/JEDEC J-STD 033C Standards for storing even expensive IC packages.

  • Capacity: 1360 litres
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*
  • Double Desiccator for fast recovery
  • Humidity Range: 1 % ~ 60%RH
  • Humidity Technique: Semi-permanent dry desiccant
  • No. of Doors/Shelves: 6 Doors/5 Shelves
  • Material: Cold Roll Steel with Black Paint


Details

• ESD Safe • 3 fast Desiccators for recovery  • Normally immediate delivery

Specifications:

  • Humidity Range : 1% ~ 60%RH
  • Humidity Technique : Semi-permanet dry dessicant
  • Internal Dimensions : 1198W x 630D x 1770H  mm approx.
  • External Dimensions : 1200W x 660D x 1950H mm approx.
  • Material :  Cold Roll Steel with Black Paint
  • No. of Doors/Shelves :  6 Doors/5 Shelves
  • Input Supply :  220V ~ 240V, 50Hz, 26 Watt



Model-INFCM-1360E-62-Dry-Cabinet

Model-INFCM-1360E-62-Dry-Cabinet

Dehumidifying Principle:

Humidity is removed inside the Storage Cabinet by use of dry powerful zeolite desiccant. The desiccant is automatically recycled  with an in-built heating mechanism. It does not require replacement. Moisture absorbed by the zeolite desiccant, is released outside of the cabinet automatically. No maintenance is required.



ESD Safe Dehumidifying Storage Cabinets are must to maintain high reliability of Bare/Assembled PCBs, ICs & other components:

Miniaturization in electronics field require use of expensive large size ICs which are not only static charge sensitive but are also moisture sensitive. Such ICs need higher level of moisture control as otherwise they will have internal cracking during reflow process because of moisture expansion. Prevention lies in storing such ICs in ESD Safe and Humidity Controlled Dry Storage Cabinets.



Optional Door Alarm Module:

Alarm for Dry Cabinet

Alarm for Dry Cabinet

This Module can be installed on top of the Cabinet to Humidity monitor the humidity inside the cabinet and to alert the user for any change in humidity value. This Module is programmable for upper and lower limit of humidity. Once the humidity inside the cabinet increases or decreases from this programmed limit, the alarm will start with beep sound. Example: The set value in the cabinet is 30% RH. The Alarm Module is programmed for +/- 5%RH. Then if the value of humidity inside the cabinet increases beyond 35%RH then the alarm start ringing. Accordingly if the humidity inside the cabinet decreases beyond 25%RH then the alarm start ringing. If the door is opened for long time, the humidity value increases from the set upper limit - the alarm start ringing.



Optional Data Logger with PC Interface & Software:

The humidity and temperature inside the cabinet is monitored on a computer using this optionally available Data-logger. For this Datalogging the hardware is fitted on the Dry Cabinet. This hardware allows the Dry Cabinet to be connected to a PC thru a connecting cable (RS232 to USB). The software provided allows the capturing and saving the data on a computer. Capturing time intervals is programmable. It can be programmed for 1 second, 1, 2, 3, 4, & 5 minutes. The data is displayed on the monitor in tabular form as well as in graphical form. This data is captured and automatically saved in the computer. This data can be viewed in excel sheets for further analysis.

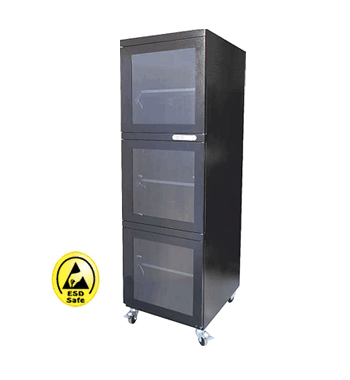

Dry Storage Cabinet Model IDSC-728

1 ~ 60% RH Dehumidifying Dry Storage Cabinet

Model: IDSC-728

Humidity range conforms to IPC/JEDEC J-STD 033C Standards for storing even expensive IC packages.

  • Capacity: 728 litres (approx.)
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*
  • Double Desiccator for fast recovery
  • Humidity Range: 1 % ~ 60%RH
  • Humidity Technique: Semi-permanent dry desiccant
  • No. of Doors/Shelves: 3 Doors/5 Shelves
  • Material: Cold Roll Steel with Black Paint


Details

• ESD Safe • 2 fast Desiccators for recovery • Normally immediate delivery

Specifications:

  • Humidity Range :  1% ~ 60%RH
  • Humidity Technique : Semi-permanent dry desiccant
  • Internal Dimensions : 598W x 680D x 1738H mm approx.
  • External Dimensions : 600W x 710D x 1920H mm approx.
  • Material : Cold Roll Steel with Black Paint
  • No of Doors/Shelves : 3 Doors/5 Shelves
  • Input Supply : 220V ~ 240V, 50Hz, 13 Watt



Model-INFCM-1360E-62-Dry-Cabinet

Model-INFCM-1360E-62-Dry-Cabinet

Dehumidifying Principle:

Humidity is removed inside the Storage Cabinet by use of dry powerful zeolite desiccant. The desiccant is automatically recycled  with an in-built heating mechanism. It does not require replacement. Moisture absorbed by the zeolite desiccant, is released outside of the cabinet automatically. No maintenance is required.



ESD Safe Dehumidifying Storage Cabinets are must to maintain high reliability of Bare/Assembled PCBs, ICs & other components:

Miniaturization in electronics field require use of expensive large size ICs which are not only static charge sensitive but are also moisture sensitive. Such ICs need higher level of moisture control as otherwise they will have internal cracking during reflow process because of moisture expansion. Prevention lies in storing such ICs in ESD Safe and Humidity Controlled Dry Storage Cabinets.



Optional Door Alarm Module:

Alarm for Dry Cabinet

Alarm for Dry Cabinet

This Module can be installed on top of the Cabinet to Humidity monitor the humidity inside the cabinet and to alert the user for any change in humidity value. This Module is programmable for upper and lower limit of humidity. Once the humidity inside the cabinet increases or decreases from this programmed limit, the alarm will start with beep sound. Example: The set value in the cabinet is 30% RH. The Alarm Module is programmed for +/- 5%RH. Then if the value of humidity inside the cabinet increases beyond 35%RH then the alarm start ringing. Accordingly if the humidity inside the cabinet decreases beyond 25%RH then the alarm start ringing. If the door is opened for long time, the humidity value increases from the set upper limit - the alarm start ringing.



Optional Data Logger with PC Interface & Software:

The humidity and temperature inside the cabinet is monitored on a computer using this optionally available Data-logger. For this Datalogging the hardware is fitted on the Dry Cabinet. This hardware allows the Dry Cabinet to be connected to a PC thru a connecting cable (RS232 to USB). The software provided allows the capturing and saving the data on a computer. Capturing time intervals is programmable. It can be programmed for 1 second, 1, 2, 3, 4, & 5 minutes. The data is displayed on the monitor in tabular form as well as in graphical form. This data is captured and automatically saved in the computer. This data can be viewed in excel sheets for further analysis.


Dry-Storage-Cabinet-IDSC3215

ESD Safe Dehumidifying Dry Storage Cabinet

Model: IDSC3215

Humidity Range 10%~ 50%RH • 2 Desiccators with provision to switch ON either 1 or 2 Humidity Range

  • Made from Steel with Black Paint
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • The error of humidity value is ±3%RH (It is not ±3%)*
  • Internal Dimensions : 996 x 450 x 1042 mm (W*D*H)
  • No. of Shelves : 3 (Adjustable)
  • Castor Wheels : Yes, 2 with locking, ESD Safe type
  • Humidity Technique : Desiccant only

ESD Safe Dry Storage Cabinet for PCBs & ICs

Model: IDSC-240

Normally available with immediate delivery as we stock this model.

Available in 20~60% RH Range

  • Capacity: 240 litres
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*
  • Humidity Technique : Semi-permanent dry Desiccants
  • Internal Dimensions (in mm) : 598Wx372Dx1083H
  • Material : Cold Rolled Steel
  • No. of Doors : 2
  • Number of Shelves : 3 (Adjustable)

ESD Safe Dry Storage Cabinet for PCBs & ICs

Model: IDSC-320

Normally available with immediate delivery as we stock this model.

Humidity 20% ~ 60%RH with Digital Display

  • Capacity: 320 litres
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*

5~50% RH Dehumidifying Dry Storage Cabinet Model IDSC-510

5~50% RH Dehumidifying Dry Storage Cabinet

Model: IDSC-510

Conforms to IPC/JEDEC J-STD 033C Standards for storing even expensive IC packages.

Available in 5% ~ 50%RH Range

  • Capacity: 510 litres
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*
  • Double Desiccator for fast recovery

Dry Cabinet IDC-180

10~60%RH Dehumidifying Dry Storage Cabinet

Model IDSC-180

Low priced model for consumer applications. Normally immediate delivery.

Available in 10~60%RH Range

  • Capacity: 189 litres (approx.)
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Door frame covered with Magnetic Rubber to avoid leakage
  • Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*

Dry Cabinet | FCM280

Dehumidifying Dry Storage Cabinet

Model: FCM280

Commonly used for storing Cameras, Photographic, Audio Visual products, Optical Lenses etc., Dehydrated Food, Powder Food, Health Food, Tea Samples etc.

Available in 20% ~ 60%RH Range

  • Capacity: 84 litres (approx.)
  • Tampered Toughened Glass Windows
  • LED Display for Temperature and Humidity
  • Door Frame covered with Magnetic Rubber to avoid leakage
  • Precise Humidity Controller maintains stable RH Level
  • Accuracy: ±3%RH (It is not ±3%)*
