Electric Screwdrivers – Pneumatic Screwdrivers
We supply a comprehensive range of high quality Electric Screwdrivers and Spares from Kolver, Conos and other brands in India.

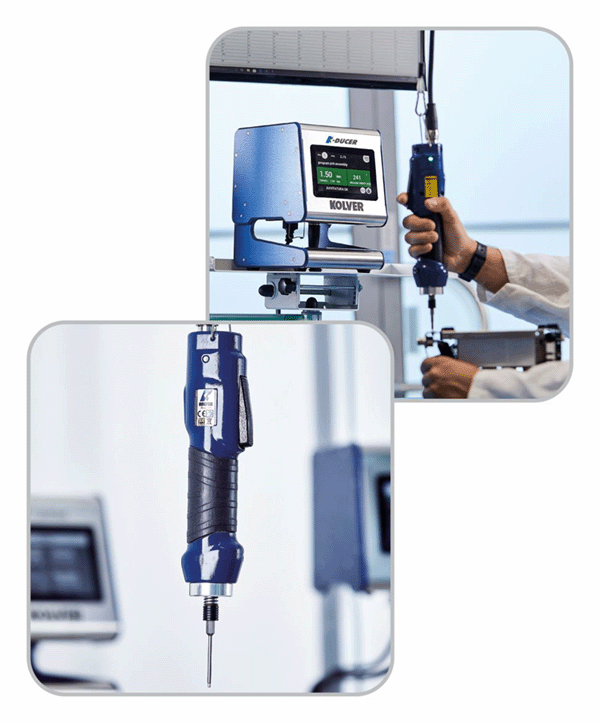

INDE offers highly reliable Kolver Italy make Transducerized (K-Ducer) Torque Controlled Electric Screwdrivers, PLUTO Series Torque Controlled Electric Screwdrivers up to 50 Nm for optimum tightening of screws in automotive and other demanding applications. Kolver also offers Torque Testers, Linear Torque Action Arms and Telescopic Arms.
Buy Electric Screwdriver from Kolver, Conos and other brands equivalent to Kilews in India. We are the official partners for Kolver Italy in India to provide hi-reliability Transducerized (K-Ducer ) Torque Controlled Electric Screwdrivers, PLUTO Series Torque Controlled Electric Screwdrivers up to 50 Nm for optimum tightening of screws in automotive and other demanding applications. Kolver also offers Torque Testers, Linear Torque Action Arms and Telescopic Arms. We also supply and service other brands of electric screwdrivers like Conos in India at best price.
Founded in 1989, Kolver produces 1000’s every year Electric Screwdrivers cover wide torque range at several speeds and feature either shut-off clutch or current control system, Coreless or Brushless motors: all controlled by state-of-art Electronic Control Unit. Kolver Electric Screwdrivers have very low operating and maintenance cost as well reduced vibration and noise levels.
We also stock and supply Spare Parts and offer Service for Electric Screwdrivers in India. Find below the specifications, features, datasheets and ordering procedure for various screwdrivers that we offer. Some electric screwdrivers are available on special discounts too.
Working Demo of Kolver Electric Screwdriver

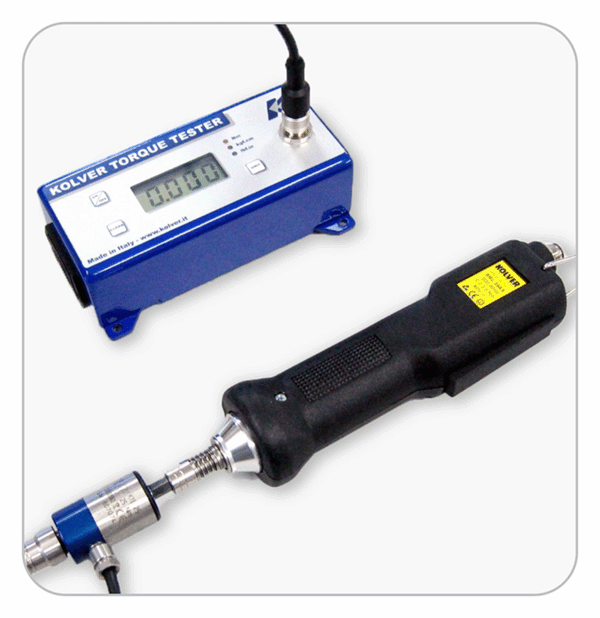

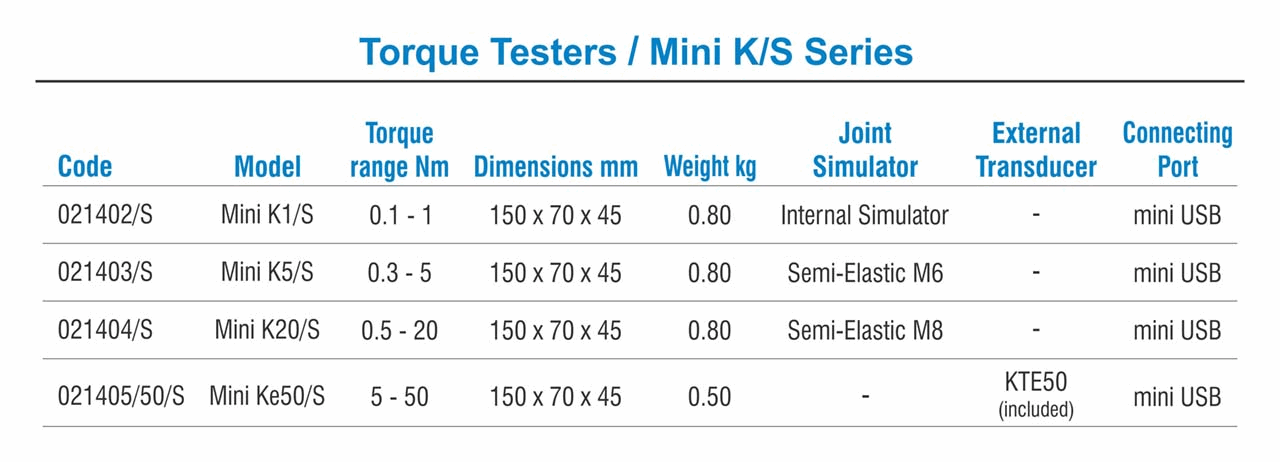

Kolver Torque Tester for Electric Screwdrivers
KOLVER ITALY Precision Electric Screwdrivers & Torque Testers
Kolver Electric Screwdrivers are Ergonomic, Clean, Safe, Flexible, Accurate, Noiseless and Cost Effective. Transducerized Solution (K-Ducer) Electric Screwdrivers, PLUTO Series Torque Controlled Electric Screwdrivers upto 50 Nm for optimum tightening of screws in automotive and other demanding applications. We offer Torque Testers, Linear Torque Action Arms and Telescopic Arms.
Features of Kolver Electric Screwdrivers
- Most advanced DC tools in the market, able to reach 50 Nm.
- Innovative coreless electric motor with low inertia and friction.
- Absence of iron losses for extreme efficiency and extended life
- Planetary gearboxes with high quality composite materials.
- Pistol grip to fit operator’s hand ergonomically.

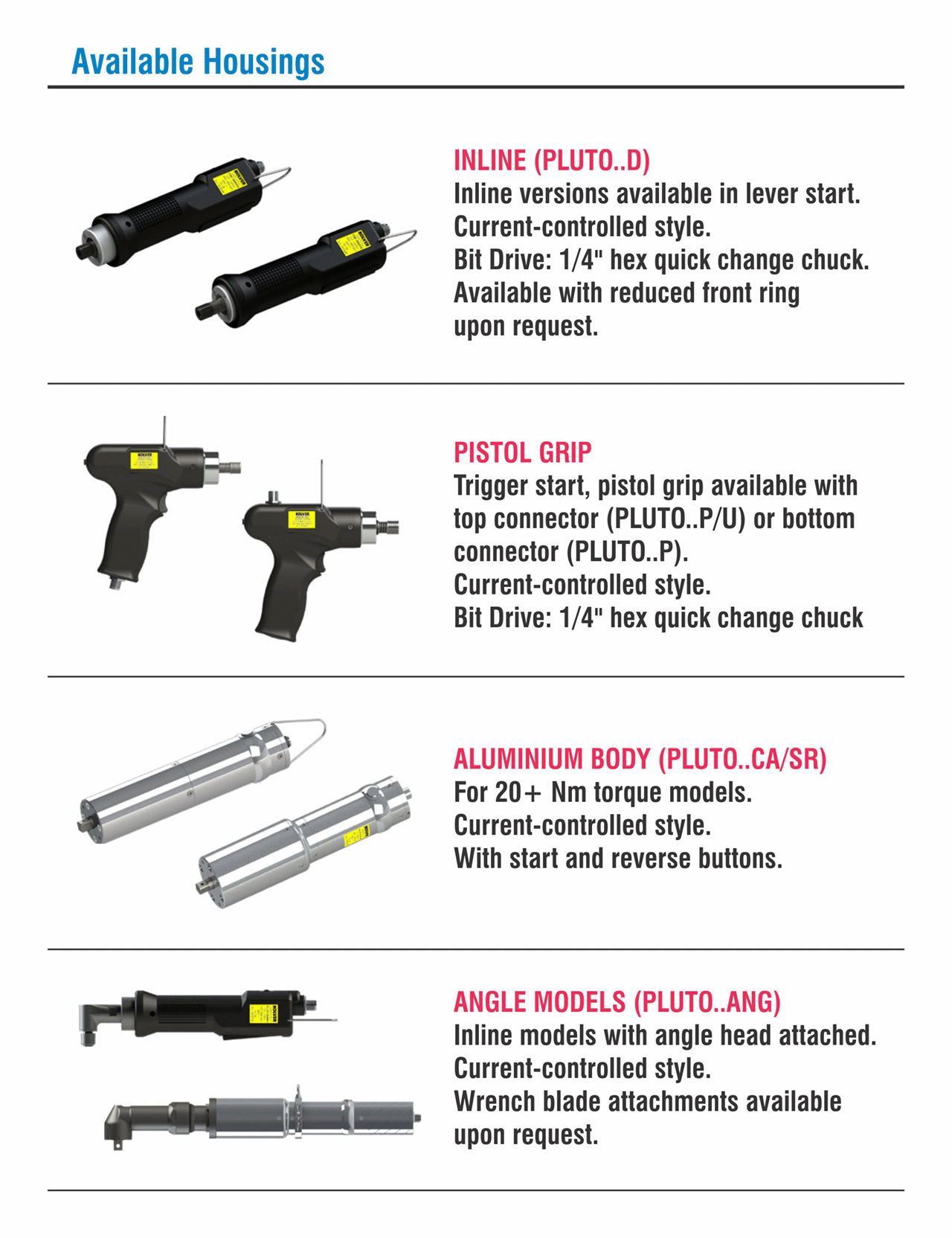

- PLUTO screwdrivers are available in pistol or inline styles.
- All models are ESD safe.
- Select models (Pluto 3, 5, 7 FR) also available in Clutch-Style torque adjustment.
- The CA/SR features a sleek design with a robust aluminium body allowing for operator comfort and durability.
Kolver Electric Screwdrivers in India
At INDE Enterprises, we take pride in offering a comprehensive range of Kolver Electric Screwdrivers, the pinnacle of precision and performance. These remarkable tools have revolutionized the industry with their exceptional features and unmatched capabilities. Allow us to present the compelling reasons why choosing Kolver Electric Screwdrivers from INDE Enterprises is the best decision you can make:
Unparalleled Precision: Kolver Electric Screwdrivers are engineered to deliver unparalleled precision in every tightening operation. With advanced electronic shut-off mechanisms, these screwdrivers offer accuracy within 5% of the pre-set value, ensuring consistent and reliable results for even the most demanding applications.
Ergonomic Excellence: Our range of Kolver Electric Screwdrivers is designed with utmost attention to ergonomics. Featuring an advanced grip design and a lightweight construction, these tools provide maximum operator comfort and minimize fatigue, allowing for extended use without compromising productivity.
Clean and Environmentally Friendly: Unlike traditional pneumatic screwdrivers, Kolver Electric Screwdrivers operate without the need for air exhaust or lubrication. This not only creates a cleaner working environment but also contributes to a more sustainable and eco-friendly workplace.
Versatility at Its Best: INDE Enterprises offers a wide range of Kolver Electric Screwdrivers to cater to diverse applications. Whether you need straight, pistol, 90° angled, ESD-safe, or vacuum-enabled models, we have the perfect solution to meet your specific requirements. Additionally, our screwdrivers can be customized with multi-torque capabilities, providing additional functionality for enhanced versatility.
Whisper-Quiet Operation: Say goodbye to the noise and distractions caused by pneumatic tools. Kolver Electric Screwdrivers operate quietly, with noise levels as low as 55 dB(A), ensuring a peaceful working environment without compromising performance.
Cost-Effective Solution: Choosing Kolver Electric Screwdrivers from INDE Enterprises offers significant cost savings. With virtually no maintenance requirements and no need for compressed air lines, spiral hoses, couplers, filters, and regulators-lubricators, these screwdrivers are up to 200 times cheaper to operate compared to pneumatic alternatives. Say goodbye to the high costs associated with maintenance and the need for additional equipment.
Authorized Partners: INDE Enterprises is an authorized partner for Kolver Electric Screwdrivers in India. As a trusted distributor, we provide genuine and high-quality products, backed by comprehensive after-sales support and service. You can trust us to deliver exceptional value and ensure a seamless experience from selection to installation and beyond.
When it comes to precision, efficiency, and reliability, Kolver Electric Screwdrivers from INDE Enterprises are the unrivaled choice. We invite you to explore our range of Kolver Electric Screwdrivers and experience the pinnacle of performance in every tightening operation. Contact us today to discuss your specific requirements and let us empower your business with the finest electric screwdrivers in the market.
SUMMARY OF KOLVER ELECTRIC SCREWDRIVERS
- ERGONOMIC : Advanced grip design, light in weight, vibrations within the norms for maximum operator comfort.
- CLEAN : No air exhaust + No lubrication = a cleaner environment SAFE Because of the transformer, only 30 V to the tool.
- FLEXIBLE : From the Controller, you can adjust the running speed and the slow start duration. Multi torque models also available for additional functions.
- ACCURATE : With the electronic shut off mechanism, the accuracy is better than 5% of the pre-set value.
- FOR EVERY APPLICATION : Torque range up to 50 Nm, straight, pistol, 90°, ESD, with vacuum, lever start or push to start...
- NOISELESS : Noise within 55 dB(A)
- COST EFFECTIVE : Virtually no maintenance + no need of compressed air line + no need of spiral hoses, couplers, filters and regulators-lubricators = operating cost up to 200 times cheaper than pneumatic screwdrivers.
INDE Enterprises is the Authorized Partners for Kolver Electric Screwdrivers in India

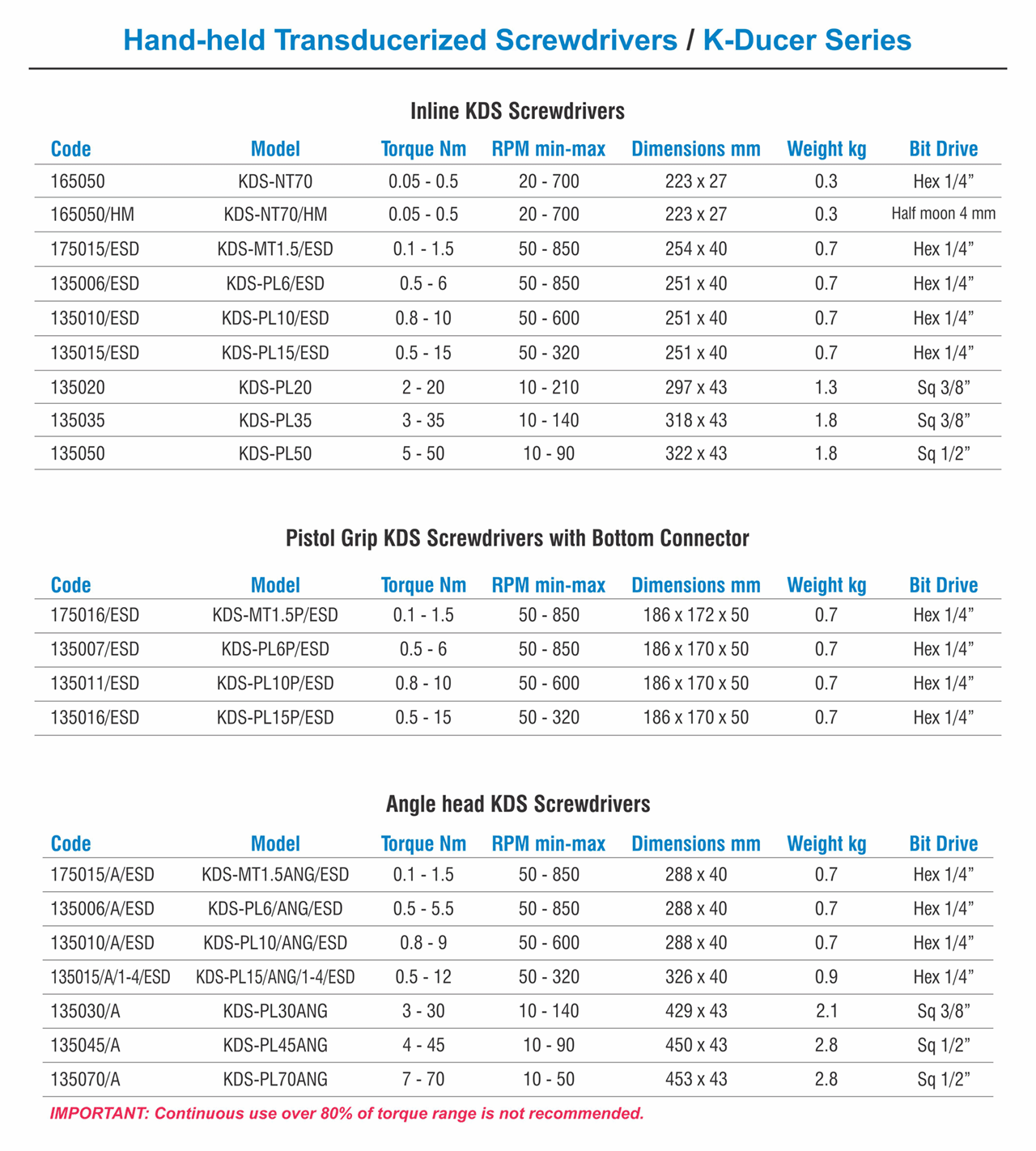

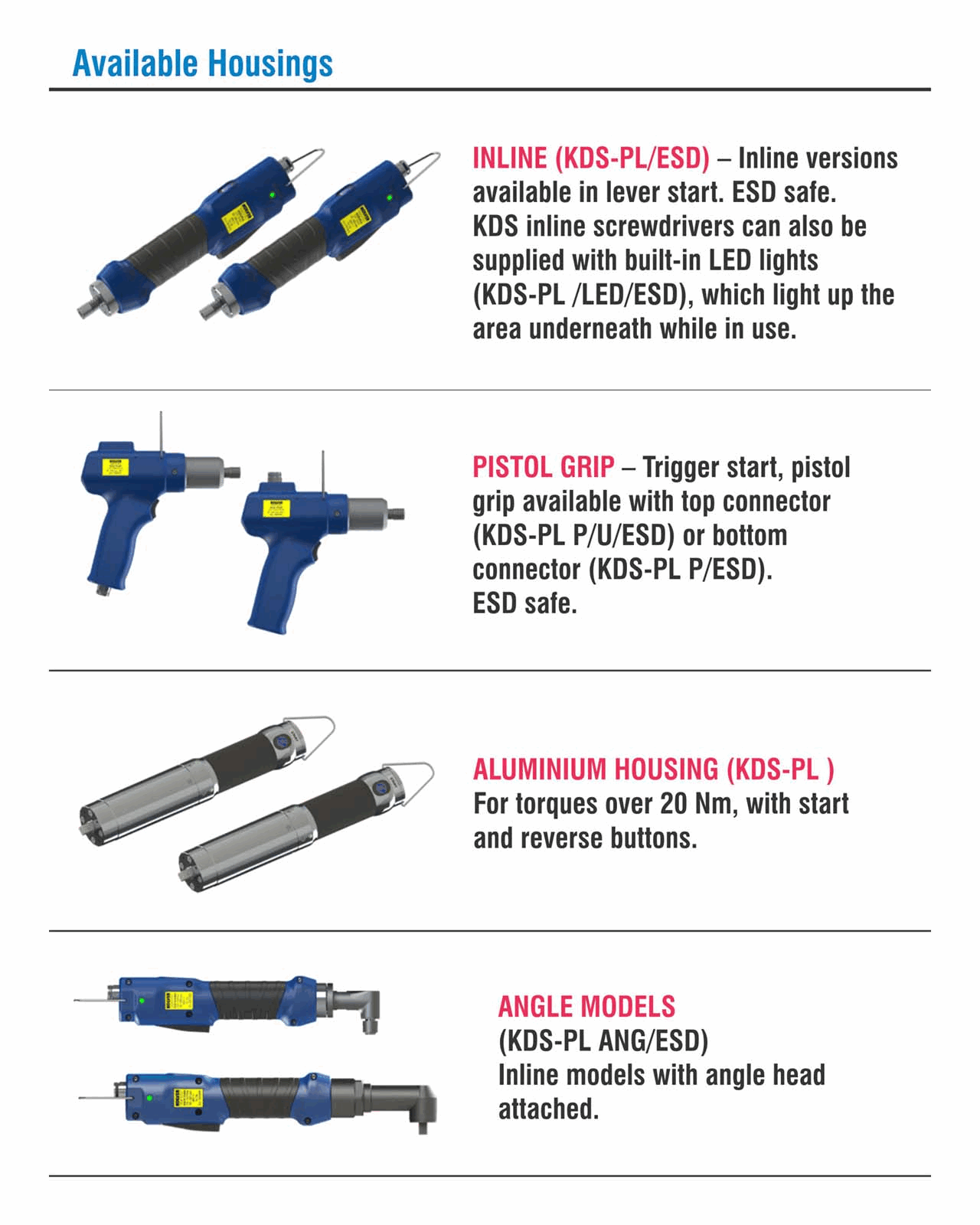

KDS ELECTRIC SCREWDRIVERS
KOLVER KDS transducerized Electric Screwdrivers cover assembly line requirements for accurate, high-quality torque and angle-controlled screws tightening. The built-in compact transducer provides torque control with excellent repeatability also. KDS Screwdrivers feature unsurpassed ergonomics, soft touch design, status LED, temperature protection combined with full traceability and error-proofng capabilities. These are available in straight, pistol and fixture configurations.
Model
|
Code Number
|
Torque Nm/ Kgf-cm
|
Max RPM
|
Weight (Kg)
|
Length (mm)
|
Housing Styles
|
---|---|---|---|---|---|---|
135006
|
0.5~6.0/ 5 ~60
|
850
|
0.7
|
251
|
Inline
|
|
135106
|
0.9
|
250
|
Fixture Mount
|
|||
135007
|
0.7
|
196
|
Pistol
|
|||
135010
|
0.8~10/ 8~100
|
600
|
0.7
|
251
|
Inline
|
|
135110
|
0.9
|
250
|
Fixture Mount
|
|||
KDS-PL10P
|
135011
|
0.7
|
196
|
Pistol
|
||
KDS-PL15
|
135015
|
0.5~15/ 5~150
|
320
|
0.7
|
251
|
Inline
|
KDS-PL15CA
|
135115
|
0.9
|
250
|
Fixture Mount
|
||
KDS-PL15P
|
135016
|
0.7
|
196
|
Pistol
|
Range of FAB & RAF Series Torque Controlled Electric Screwdrivers
Model
|
Code Number
|
Torque Nm
|
Torque Kgf-cm |
RPM
Min ~ Max |
Weight (Kg)
|
Dimensions (mm)
|
Controller Type
|
---|---|---|---|---|---|---|---|
112012/FR
|
0.2~1.2
|
2.0~12.0
|
600-1000
|
0.48
|
249×33
|
EDU1FR/SG
|
|
FAB18PS/FR
|
112618/FR
|
0.3~1.8
|
3.0~18.0
|
450-650
|
0.48
|
249×33
|
EDU1FR/SG
|
RAF32PS/FR
|
122032/FR
|
0.7~3.2
|
7.0~32.0
|
600-1000
|
0.65
|
269×40
|
EDU1FR/SG
|
RAF50PS/FR
|
122650/FR
|
0.9~4.5
|
0.9~45.0
|
400-700
|
0.65
|
269×40
|
EDU1FR/SG
|

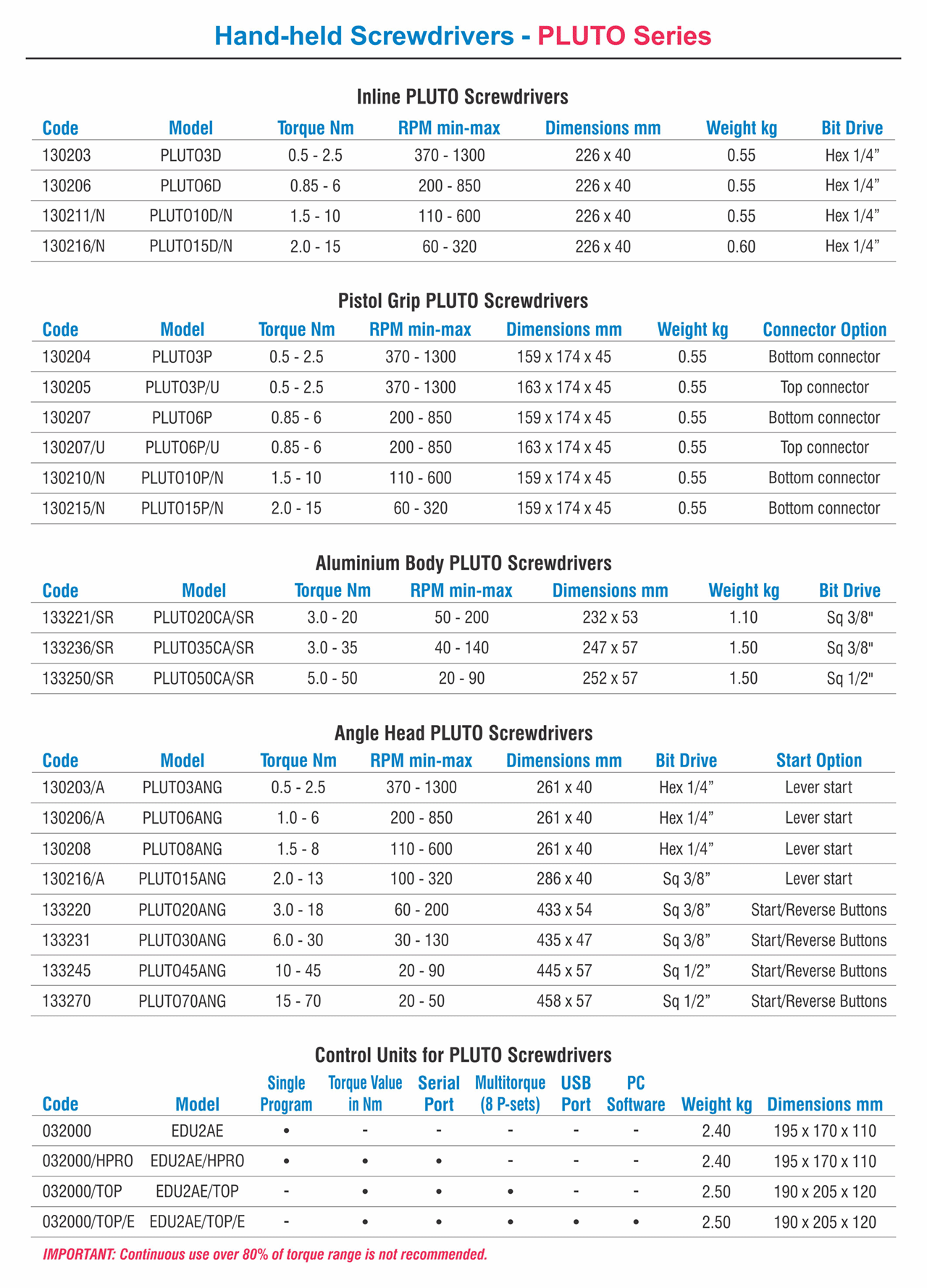

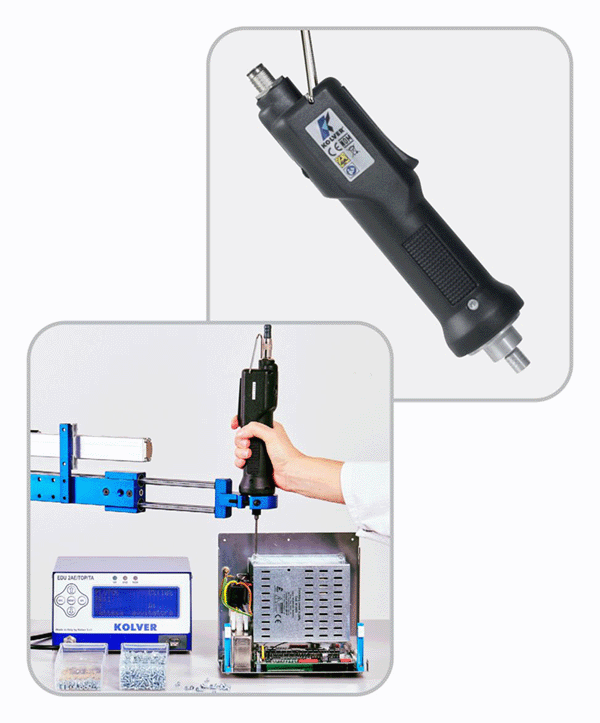

Pluto Series Electric Screwdrivers Current Control & Clutch Style
Pluto CA/SR series Electric Screwdrivers are designed for higher torque range up to 50Nm. The CA/SR series features a sleek design with a robust aluminium body allowing for operator comfort and durability. Torque & Angle controlled models are available with TA options.
Model
|
Code Number
|
Torque Nm
|
RPM (Max)
|
Weight (Kg)
|
Dimensions (mm)
|
Torque Adjustment
|
Style |
---|---|---|---|---|---|---|---|
PLUTO3D
|
130203
|
0.3-3.0
|
1200
|
0.55
|
216×40
|
Current
|
Inline
|
PLUTO3P
|
130204
|
0.3-3.0
|
1200
|
0.55
|
150x150x45
|
Current
|
Pistol
|
PLUTO3P/U
|
130205
|
0.3-3.0
|
1200
|
0.55
|
150x150x45
|
Current
|
Pistol/Cord Up
|
PLUTO3D/PS
|
130203/PS
|
0.3-3.0
|
1200
|
0.55
|
289×51
|
Current
|
Inline/Push-start
|
PLUTO3FR
|
131203
|
0.5-3.2
|
1300
|
0.55
|
273×40
|
Clutch
|
Inline
|
PLUTO5FR
|
131205
|
0.7-5.0
|
1000
|
0.55
|
273×40
|
Clutch
|
Inline
|
130206
|
0.5-6.0
|
920
|
0.55
|
216×40
|
Current
|
Inline
|
|
PLUTO6P
|
130207
|
0.5-6.0
|
920
|
0.55
|
150x150x45
|
Current
|
Pistol
|
130207/U
|
0.5-6.0
|
920
|
0.55
|
150x150x45
|
Current
|
Pistol/Cord Up
|
|
PLUTO6D/PS
|
130206/PS
|
0.5-6.0
|
920
|
0.55
|
289×51
|
Current
|
Inline/Push-start
|
131207
|
1.0-7.0
|
600
|
0.55
|
273×40
|
Clutch
|
Inline
|
|
130211/N
|
1.5-10.0
|
600
|
0.55
|
216×40
|
Current
|
Inline
|
|
130210/N
|
1.5-10.0
|
600
|
0.55
|
150x150x45
|
Current
|
Pistol
|
|
130210/U/N
|
1.5-10.0
|
600
|
0.55
|
150x150x45
|
Current
|
Pistol/Cord Up
|
|
PLUTO10D/PS
|
130211/PS
|
1.5-10.0
|
600
|
0.55
|
289×51
|
Current
|
Inline/Push-start
|
130216/N
|
2.0-15.0
|
320
|
0.60
|
216×40
|
Current
|
Inline
|
|
130215/N
|
2.0-15.0
|
320
|
0.60
|
150x150x45
|
Current
|
Pistol
|
|
130215/U/N
|
2.0-15.0
|
320
|
0.60
|
150x150x45
|
Current
|
Pistol/Cord Up
|
|
130216/PS
|
2.0-15.0
|
320
|
0.60
|
289×51
|
Current
|
Inline/Push-start
|
|
133221/SR
|
2.0-20.0
|
210
|
1.10
|
232x10x47
|
Current
|
Aluminium body*
|
|
133236/SR
|
2.0-35.0
|
140
|
1.50
|
246x60x57
|
Current
|
Aluminium body*
|
|
133250/SR
|
5.0-50.0
|
90
|
1.50
|
246x60x57
|
Current
|
Aluminium body*
|

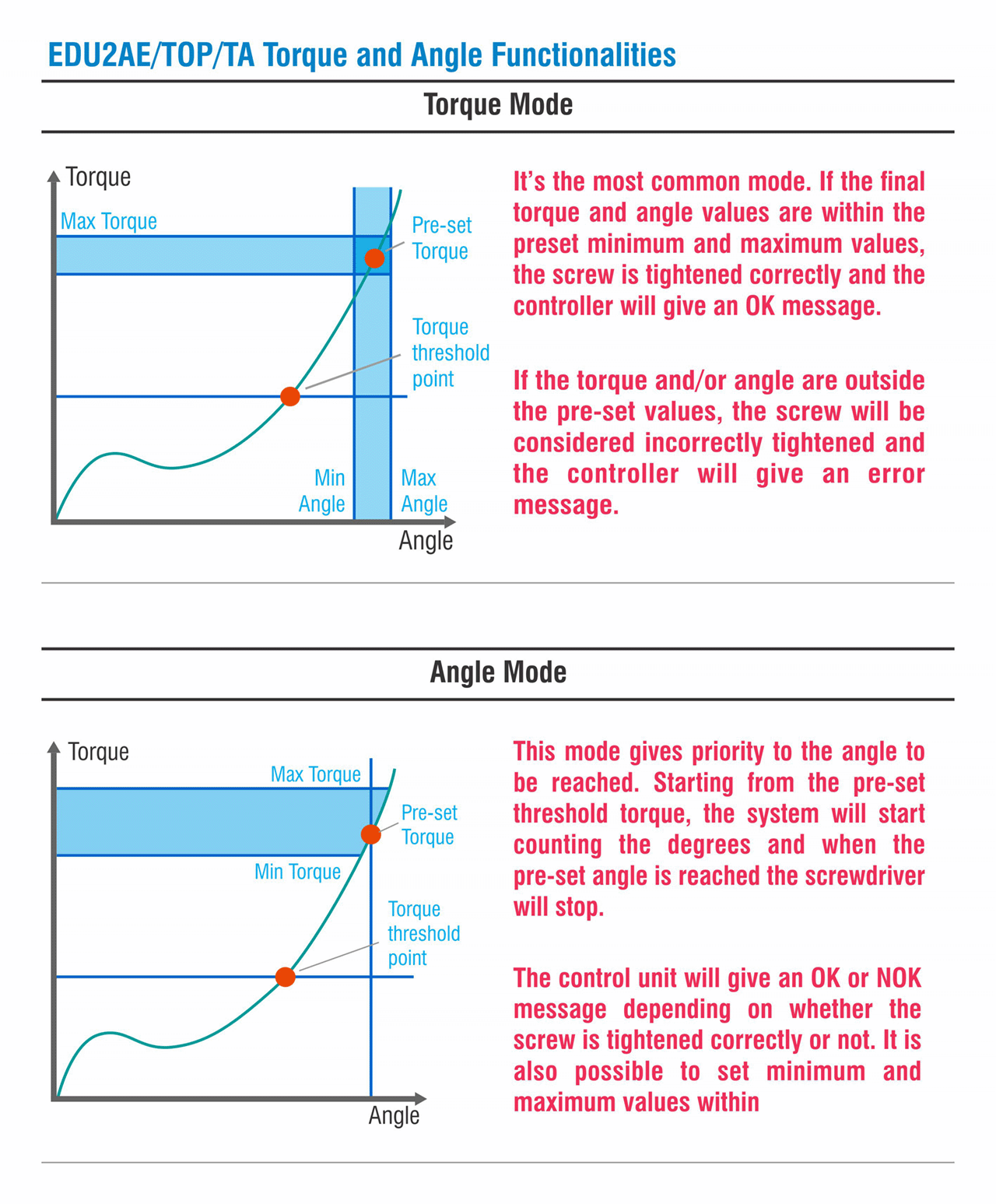

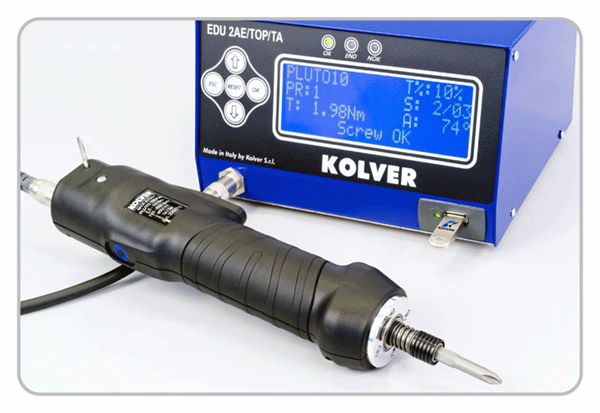

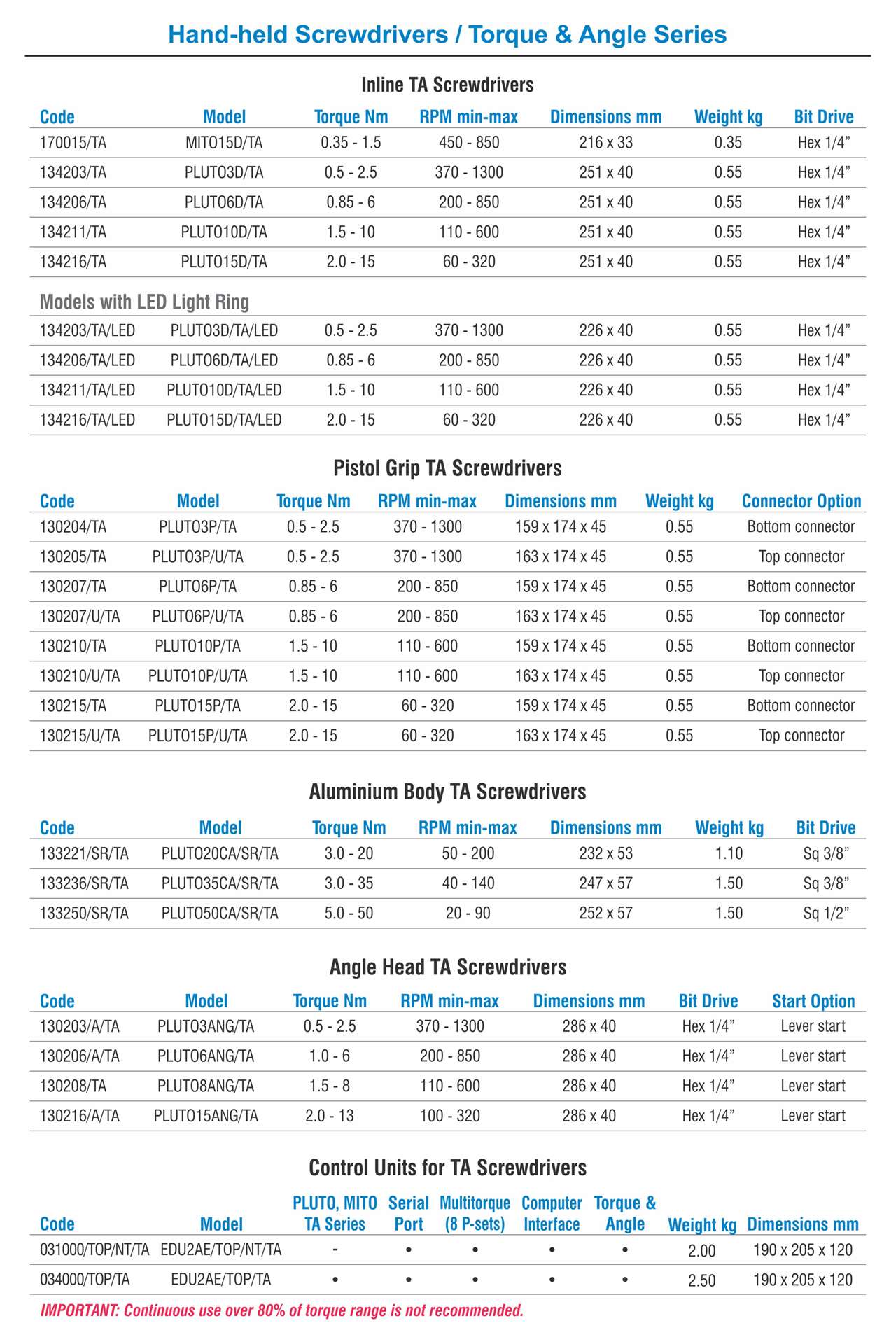

Pluto Series Electric Screwdrivers with Torque & Angle Control
Industrial tightening may require different control strategies and solutions. The most common cases are: torque control with angle monitoring and angle control with torque monitoring. Kolver Multi-Torque Torque & Angle Controllers can manage all such strategies, with up to 8 individual P-sets.
Model
|
Code Number
|
Torque Nm
|
RPM (Max)
|
Dimensions (mm)
|
Output
|

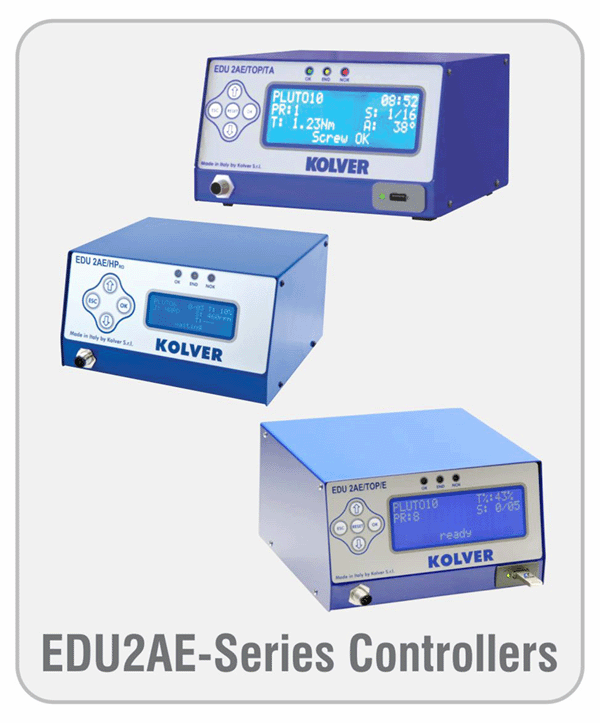

Control Unit |
---|---|---|---|---|---|---|
PLUTO3D/TA
|
130203/TA
|
0.3-3.0
|
1200
|
216×40
|
Hex.1/4”
|
EDU2AE/TOP/TA
|
PLUTO6D/TA
|
130206/TA
|
0.5-8.0
|
920
|
216×40
|
Hex.1/4”
|
EDU2AE/TOP/TA
|
PLUTO10D/TA
|
130211/TA
|
1.5-10.0
|
600
|
216×40
|
Hex.1/4”
|
EDU2AE/TOP/TA
|
PLUTO15D/TA
|
130216/TA
|
2.0-15.0
|
320
|
216×40
|
Hex.1/4”
|
EDU2AE/TOP/TA
|
PLUTO20CA/SR/TA
|
133221/SR/TA
|
2.0-20.0
|
210
|
232.10×47
|
Sq.3/8”
|
EDU2AE/TOP/TA
|
PLUTO35CA/SR/TA
|
133236/SR/TA
|
2.0-35.0
|
140
|
246.60×57
|
Sq.3/8”
|
EDU2AE/TOP/TA
|
PLUTO50CA/SR/TA
|
133250/SR/TA
|
5.0-50.0
|
90
|
206.60×57
|
Sq.1/2
|
EDU2AE/TOP/TA
|
CONOS High Reliability Electric Screwdriver
Model: RE-4800P
It is a highly reliable Electric Screwdriver model RE-4800P available in India from INDE Enterprises. Manufactured by the pioneer since 1975: CONOS Taiwan. CONOS Electric Screwdrivers are famous for their very high reliability.
Features of CONOS Electric Screwdriver RE-4800P
- World patented Clutch Mechanism for more durability of screwdriver and reduced backlash force for operators.
- Specially made patented Brake Switch has high resistance on impulsive vibration that increases the life of the switch.
- Uses patented Brake Switch which provide high stability of ±3%.
- Uses High Power Rare Earth Magnet Motor which has smaller size, provides higher torque output and is safe due to double insulation.
- Light weight and slim design assures long and fatigue-free working.
- Combined Buffer Device and new Clutch Design greatly reduces shock, improves torque precision and increases life of screwdriver.
- Lockable external torque adjustment is easy to set up and secured. There is no need to purchase any additional/separate accessories.
- Highly reliable and sturdiness design due to Steel Alloy Gear Block.
- Spiral winding wire is used in the cable of this Electric Screwdriver which reduces the possibility of bent or broken shaft.
Specifications of CONOS Electric Screwdriver RE-4800P
- Free Speed: 660 rpm
Output Torque
- N.m: 0.08 ~ 1.6
- lbf.in: 0.7 ~ 13.9
- kgf.cm: 0.8 ~ 16.0
- Start: Push-to-Start type
- Controller: T-1-CL EB Power Supply
- Length (approx.): 213mm
- Diamater (approx.): 32.5mm
- Weight (approx.): 800 grams
Scope of Supply with CONOS Electric Screwdriver RE-4800P
- Screwdriver RE-4800P
- Power Supply T-1-CL EB
- User Manual
The CONOS Electric Screwdriver RE-4800P is meticulously designed to meet the demanding requirements of precision assembly and fastening applications across a wide range of industries. With its advanced features and innovative design, it is an indispensable tool for professionals and businesses seeking optimal efficiency and durability.
Key Features of the CONOS Electric Screwdriver RE-4800P:
Patented Clutch Mechanism: The RE-4800P incorporates a world-patented clutch mechanism, ensuring enhanced durability and reduced backlash force for operators. This innovative feature guarantees consistent performance while minimizing strain on the user.
Patented Brake Switch: Equipped with a specially designed patented Brake Switch, the screwdriver exhibits remarkable resistance to impulsive vibrations. This high-quality switch significantly extends the tool's lifespan, ensuring long-term reliability.
High Stability: The RE-4800P utilizes the patented Brake Switch to provide exceptional stability with a deviation of ±3%. This ensures precise and accurate fastening operations, minimizing the risk of errors.
High Power Rare Earth Magnet Motor: Featuring a high-power rare earth magnet motor, the RE-4800P delivers superior torque output despite its compact size. The motor's double insulation ensures both safety and efficiency during operation.
Lightweight and Slim Design: Designed with user comfort in mind, the electric screwdriver boasts a lightweight and slim design. This ergonomic construction allows for extended working periods without causing fatigue, ultimately leading to increased productivity.
Enhanced Shock Absorption: The combination of a buffer device and a new clutch design effectively reduces shock during operation. This advanced feature not only improves torque precision but also extends the overall lifespan of the screwdriver, making it a reliable long-term investment.
Lockable External Torque Adjustment: The RE-4800P is equipped with a convenient lockable external torque adjustment mechanism. Users can easily set up and secure torque settings without the need for additional accessories, providing versatility for various applications.
Sturdy Construction: Designed with a steel alloy gear block, the screwdriver ensures exceptional reliability and durability. This robust construction enables the tool to withstand demanding industrial environments with ease.
Spiral Winding Cable: The Electric Screwdriver RE-4800P features a spiral winding cable, reducing the possibility of bent or broken shafts. This innovative cable design enhances the longevity of the tool and minimizes downtime.
INDE Enterprises is proud to offer the highly reliable and durable CONOS Electric Screwdriver RE-4800P to its customers in India, helping them to enhance their efficiency and productivity.
CONOS Highly Reliable BRUSHLESS type Electric Screwdriver
Model: RE-618BL
Model RE-618BL is a highly reliable brushless type Electric Screwdriver from CONOS Taiwan sold exclusively in India by INDE Enterprises. CONOS Taiwan is among the pioneers since 1975 in providing the best electric screwdrivers.
Features of CONOS Electric Screwdriver RE-618BL
- Designed with a new sensor-less brushless of high-precision internal rotation motor of high stability, low temperature rise for long precision operation.
- Completely free from dust of carbon brushes, make it suitable to use in clean-room applications.
- Specially made patented Brake Switch has high resistance on impulsive vibration that increases the life of the switch.
- Uses patented Brake Switch which provide high stability of ±3%.
- Uses High Power Rare Earth Magnet Motor which has smaller size, provides higher torque output and is safe due to double insulation
- Light weight & slim design assures long and fatigue-free working
- Combined Buffer Device and new Clutch Design greatly reduces shock, improves torque precision & increases life of electric screwdriver.
- Lockable external torque adjustment is easy to set up and secured. There is no need to purchase any additional/separate accessories.
- Highly reliable & sturdiness design due to Steel Alloy Gears.
Specifications of CONOS Electric Screwdriver RE-618BL
- Free Speed: 100/750 rpm
- Output Torque
- N.m: 0.08 ~ 2.0
- lbf.in: 0.7 ~ 17.4
- kgf.cm: 0.8 ~ 20.0
- Start: Lever Start type
- Controller: T-1-SWB Power Supply
- Length (approx.): 220mm
- Diameter (approx.): 35mm
Scope of Supply with CONOS Electric Screwdriver RE-4800P
- Screwdriver RE-618BL
- Power Supply T-1-SWB
- User Manual
INDE Enterprises, a leading provider of innovative industrial tools and equipment, is pleased to announce the exclusive availability of the CONOS Electric Screwdriver RE-618BL in the Indian market. Manufactured by CONOS Taiwan, a renowned pioneer in electric screwdriver technology since 1975, the RE-618BL model offers exceptional performance and reliability.
The CONOS Electric Screwdriver RE-618BL is designed to meet the demanding needs of precision assembly and fastening applications across various industries. It incorporates cutting-edge features that ensure efficient and accurate operations, making it an indispensable tool for professionals and businesses alike.
Key Features of the CONOS Electric Screwdriver RE-618BL:
Brushless Motor Technology: The RE-618BL is equipped with a sensor-less brushless internal rotation motor, delivering high stability and low temperature rise for prolonged precision operation. Its innovative design eliminates the need for carbon brushes, making it suitable for clean-room environments where dust contamination must be minimized.
Patented Brake Switch: This electric screwdriver features a specially designed patented Brake Switch, offering remarkable resistance to impulsive vibrations. The enhanced durability of the switch prolongs the overall lifespan of the tool while ensuring consistent performance in challenging working conditions.
High Power Rare Earth Magnet Motor: With its compact size, the RE-618BL houses a high-power rare earth magnet motor that provides superior torque output. The motor's double insulation ensures operator safety while maximizing productivity.
Ergonomic Design: The electric screwdriver boasts a lightweight and slim design, enabling fatigue-free operation during extended working hours. Its ergonomic construction enhances user comfort and efficiency, resulting in improved productivity and reduced strain.
Enhanced Torque Precision: The RE-618BL incorporates a combined Buffer Device and new Clutch Design, effectively reducing shock and improving torque precision. This advanced feature enhances the overall performance of the screwdriver and extends its operational life.
Convenient and Secure Torque Adjustment: The screwdriver is equipped with a lockable external torque adjustment mechanism, allowing easy and secure setup without the need for additional accessories. Users can effortlessly customize torque settings to suit their specific application requirements.
Unmatched Reliability: With steel alloy gears, the CONOS Electric Screwdriver RE-618BL is designed to withstand heavy-duty use and ensure long-term reliability. This robust construction guarantees consistent performance in challenging industrial environments.
INDE Enterprises is dedicated to providing Indian industries with cutting-edge tools and equipment that enhance productivity and efficiency. With the introduction of the CONOS Electric Screwdriver RE-618BL, INDE Enterprises reinforces its commitment to delivering premium-quality solutions to meet the evolving needs of the manufacturing sector.
BRUSHLESS Torque Controlled Electric Screwdriver
Model: BSD-418
- Our Torque Controlled Electric Screwdriver operate on low DC voltage for with AC/DC Power BSD418 s operator's safety inplace of operating directly on risky mains AC supply.
- Much lower priced carbon brush Electric Screwdrivers inherently get damaged because of electric spar es type ks when timely BSD418 their carbon brushes are not replaced . To eliminate this problem, Torque Controlled Electric Screwdriver have have reliable BRUSHLESS motor which does not carbon brushes and provides far longer operational life.
- Our BSD418 Torque Controlled Electrical Screwdriver uses for virtually its life-long operational Hall effect Switches reliability.
Features of Brushless Torque Controlled Electric Screwdriver Model BSD-418
- Uses extremely long life span precision brushless motor which provides high stability with low noise and low temperature rise during continuous use.
- Being free from dust of carbon brushes, it is suitable for cleanroom applications also.
- Uses Hall Touchless Signal Sensing Switch (inplace of conventional mechanical switch) which provides far far longer operational life.
- The output shaft uses unique cold extrusion process to enhance the fitting of the bits and the concentricity of the screwdriver.
- Light weight and slim design assures fatigue-free operator's working.
- Highly reliable and sturdy design due to special Alloy Gears.
- Rotational Speed: 1000 rpm
- Torque Range
- N.m: 0.4 ~ 1.8
- lbf.in: 4.0 ~ 18.0
- kgf.cm: 0.8 ~ 20.0
- Start: Lever Start type
- Controller: Model S-3B
- Length (approx.): 265mm
- Diameter (approx.): 35mm
- Weight (approx.): 465 grams
- Screw Size
- Machine Screws: 2.0 ~ 4.0
- Tapping Screws: 2.3 ~ 3.5
Scope of Supply with BRUSHLESS Torque Controlled Electric Screwdriver Model BSD-418
- Screwdriver: BSD-418
- Power Supply S-3B
- 2 Nos. Spare Bits
- User Manual
Hi-Speed BRUSHLESS Torque Controlled Electric Screwdriver
Model: BSD-1028
- Our Torque Controlled Electric Screwdriver operate on low DC voltage for with High Speed BSD1028 s operator's safety. AC/DC Power inplace of operating directly on risky mains AC supply.
- Much lower priced carbon brush Electric Screwdrivers inherently get damaged because of electric spar es type ks when timely BSD1028 their carbon brushes are not replaced . To eliminate this problem, Torque Controlled Electric Screwdriver have have reliable BRUSHLESS motor which does not carbon brushes and provides far longer operational life.
- Our BSD1028 Torque Controlled Electrical Screwdriver uses for virtually its life-long operational Hall effect Switches reliability.
Features of Hi-Speed BRUSHLESS Torque Controlled Electric Screwdriver BSD-1028
- Uses extremely long life span precision brushless motor which provides high stability with low noise and low temperature rise during continuous use.
- Being free from dust of carbon brushes, it is suitable for cleanroom applications also.
- Uses Hall Touchless Signal Sensing Switch (inplace of conventional mechanical switch) which provides far far longer operational life.
- The output shaft uses unique cold extrusion process to enhance the fitting of the bits and the concentricity of the screwdriver.
- Light weight and slim design assures fatigue-free operator's working.
- Highly reliable and sturdy design due to special Alloy Gears.
Specifications of Hi-Speed BRUSHLESS Torque Controlled Electric Screwdriver BSD-1028
- Rotational Speed: 1500 rpm
- Torque Range
- N.m: 1.0 ~ 2.8
- kgf.cm: 10.0 ~ 28.0
- Start: Lever Start type
- Controller: Model S-9A
- Length (approx.): 262mm
- Diameter (approx.): 36mm
- Weight: 545 grams
- Screw Size
- Machine Screws: 3.5 ~ 6.0
- Tapping Screws: 3.0 ~ 5.0
Scope of Supply with BRUSHLESS Torque Controlled Electric Screwdriver BSD-1028
- Screwdriver: BSD-1028
- Power Supply S-9A
- 2 Nos. Spare Bits
- User Manual
Lowest Cost Torque Controlled Electric Screwdriver
Model: JZR-815
One single Power Supply connects to 2 Screwdrivers Model JZR-815 to lower cost.
User Guide for Electric Screwdriver Model JZR-815
- Connect the Electric Screwdriver with Power Supply.
- Insert the Bit in the collet by pushing the collar and then lock the bit by releasing the collar.
- Adjust the required torque via torque adjuster. Rotate clockwise to increase the torque and counterclockwise to decrease the torque.
- Switch-on the Power supply. Select output (18/30/36V) from Power Supply. Press forward button for tightening and press reverse button for unscrew the screws.
- Once the set torque is achieved the clutch mechanism of the screwdriver starts slipping automatically.
Specifications of Electric Screwdriver Model JZR-815
- Output Voltage (Selectable): 18/30/36V
- RPM (Selectable)*: 320/560/830 (rpm)
- Torque range (kgf.cm): 2 ~ 15 kgf.cm
- Applicable Screws (mm): 1.5 ~ 3 mm
- Collet size: 1/4 Hex
- Dimensions (dia x length): 42m x 260mm
- Noise (dB): <55dB
- Applicable Power Supply: JZR-02
Scope of Supply with Electric Screwdriver Model JZR-815
- 2xJZR-815 Electric Screwdriver
- 1xJZR-02 Power Supply
Torque controlled Electric Screwdrivers, Auto Shut-Off
Model: IS Series
Models of IS Series Electric Screwdrivers
INDE Enterprises offer three models of IS Series Electric Screwdrivers. Models IS-2000, IS-6500 and IS-7000 with Torque Range starting from 0.2Kgf-cm ~ 22Kgf-cm and 0.019Nm ~ 2.15Nm.
Features of IS Series Electric Screwdrivers
- Forward/Reverse rotation feature
- Variety of interchangeable bits like Slotted, Philips, Hex, Torx
General Specifications of IS Series Electric Screwdrivers
- Power Supply : 220 VAC, 50 Hz
- Output Voltage : 30V DC
- Collet Size : 1/4” Hex
Scope of Supply with Every IS Series Electric Screwdrivers
- Screwdriver
- 2 x Bits
- Power Supply
High Precision BRUSHLESS (Push-to-Start) Electric Screwdriver
Model: ESBT-518PD
- Our ESBT-Series Torque Controlled Electric Screwdrivers operate on low DC voltage for operator's safety with AC/DC Power & Speed Controller inplace of operating directly on risky mains AC supply which other competitors offer to save their cost.
- Much lower priced carbon brush Electric Screwdrivers inherently get damaged because of electric sparks when their carbon brushes are not replaced in time periodically. To eliminate this problem, ESBT-Series Torque Controlled Electric Screwdrivers have reliable BRUSHLESS motor which does not need uses carbon brushes and provides far longer operational life.
- Similar Electric Screwdrivers operating on low safe DC voltage and using brushless motor from competitors costs 60% or more.
Features of Electric Screwdriver ESBT-518PD
- Uses extremely long life span precision brushless motor which provides high stability with low noise and low temperature rise during continuous use.
- Being free from dust of carbon brushes, it is suitable for cleanroom applications also.
- Uses Hall Touchless Signal Sensing Switch (inplace of conventional mechanical switch) which provides far far longer operational life.
- The output shaft uses unique cold extrusion process to enhance the fitting of the bits and the concentricity of the screwdriver.
- Light weight and slim design assures fatigue-free operator's working.
- Highly reliable & sturdiness design due to special Alloy Gears.
Specifications of Electric Screwdriver ESBT-518PD
- Rotational Speed: 900 ~ 1200 rpm
- Torque Range
- N.m: 0.49 ~ 1.76
- lbf.in: 4.33 ~ 15.62
- kgf.cm: 5.0 ~ 18.0
- Start: Push-to-Start type
- Controller: Model S-60T
- Length (approx.): 234mm
- Diameter (approx.): 35mm
- Weight: 500 grams
- Screw Size
- Machine Screws: 2.6 ~ 3.5
- Tapping Screws: 2.6 ~ 3.0
Scope of Supply with Electric Screwdriver ESBT-518PD
- Screwdriver ESBT-518PD
- Power Supply S-60T
- User Manual
BRUSHLESS Torque Controlled Electric Screwdriver
Model: ESBT-3500
Our ESBT-Series Torque Controlled Electric Screwdrivers operate on low DC voltage for operator's safety with AC/DC Power & Speed Controller inplace of operating directly on risky mains AC supply which other competitors offer to save their cost.
Features of Electric Screwdriver Model ESBT-3500
- Uses extremely long life span precision brush-less motor which provides high stability with low noise and low temperature rise during continuous use
- Being free from dust of carbon brushes, it is suitable for clean-room applications also.
- Uses Hall Touch-less Signal Sensing Switch (in-place of conventional mechanical switch) which provides far far longer operational life.
- The output shaft uses unique cold extrusion process to enhance the fitting of the bits and the concentricity of the screwdriver
- Light weight and slim design assures fatigue-free operator's working
- Highly reliable & sturdiness design due to special Alloy Gears
- Rotation Speed: 700 ~ 1100 rpm
Specifications of Electric Screwdriver Model ESBT-3500
- Rotational Speed : 700 ~ 1100 rpm
- Torque Range : N.m : 0.5 ~ 3.5 ; lbf.in : 4.4 ~ 30.9 ; kgf.cm : 5.0 ~ 35.0
- Start : Lever Start type
- Controller : Model S-60D
- Length (approx.) : 230mm
- Diameter (approx.) : 40mm
- Weight (approx.) : 450 grams
- Screw Size : Machine Screws : 2.0 ~ 6.0 ; Tapping Screws : 2.0 ~ 5.5
Scope of Supply with Electric Screwdriver Model ESBT-3500
- Screwdriver: ESBT-3500
- Power Supply OS-60D
- User Manual
BRUSHLESS Torque Controlled Electric Screwdriver
Model: ESBT-4500
Highly reliable 30 volt B RUSHLESS DC Motor for long operational life.
Features of Electric Screwdriver Model ESBT-4500
- Uses Hall Switch based on magnetic induction which has theoretically infinite operational life
- Light weight Brushless Motor produces less reaction force
- Low inertia, low impact and high torque accuracy
- Low electromagnetic interference noise
- Low temperature rise rate after prolonged operational use
- Meets clean room requirements as there is no carbon pollution
- Torque Range: 1.5 ~ 10 Kgf-cm; 0.14 ~ 0.98 Nm
Specifications of Electric Screwdriver Model ESBT-4500
- Torque Range : 1.5 ~ 10 Kgf-cm; 0.14 ~ 0.98 Nm
- Torque Accuracy : ±3%
- Screw type : Machine Screws 2.0~3.0mm; Tapping Screws 2.0 ~2.6mm
- Speed : 1000 RPM
- Start type : Lever
- Operating Voltage : 30VDC
- Length : 223 mm approximately
- Weight : 320 grams approximately
Scope of Supply with Electric Screwdriver Model ESBT-4500
- Model ESBT Screwdriver
- 2 x Bits
- Power Supply
- User Manual
High Quality Accessories for ESBT-Series Electric Screwdrivers
Spring Balance P/N: ISB 0620
Spring Balancer reduces the weight of the Electric Screwdriver while screwing the screws. It is suitable for long time fatigue-free working.
Advantages :
- The Spring Balancer improves working efficiency and diminish operators fatigue
- These makes the position of the tool stable and contribute to accurate work.
- The Spring Balancers keeps the tool safe.
- Total safe for operators as these does not use any electric or pneumatic power.
- Uses high quality spring for repeated push-pull.
Features :
- Fully metallic body
- Uses nylon coated steel rope
- Convenient location cap to adjust height
- Rotary cap to set the load capacity
90 Degree Attachment for Electric Screwdrivers P/N: I9DA OC3
This 90 Degree Attachment is most suitable when there is space limitation for screw tightening. This can be easily used with our ESBT-Series Electric Screwdrivers.
Features :
- Suitable for 1/4 inch Hex bits
- Ergonomically designed to provide smooth performance
- Made from high quality material for durable and long service life.
- This attachment practically does your work much easily and quickly in hard to reach areas where direct access is not available for straight Screwdrivers.
- It make ESBT-Series Electric Screwdrivers more comfortable to use in restricted areas
Suspension Rack for Electric Screwdrivers P/N: ISR OH4
Suspension Rack is used to place the Electric Screwdrivers while not in use. This can be fixed on the edge of the working table to place the Electric Screwdriver. Convenient to pick-up the Electric Screwdriver from side mounted Suspension Rack.
While aren’t using the Electric Screwdriver, put it in the Suspension Rack to prevent damage from falling down or other else. It’s an excellent option for tool management.
Torque Adjustment Ring Cover P/N: ITRCOC3
Torque Adjustment Ring Cover is used to secure the torque setting. Set the required torque value and cover the torque adjustment ring with this Torque Cover. After fixing the Torque Cover there are minimum chances of tampering and accidental turning of torque adjustment ring.
