Fume Extraction Systems · Fume Absorbers (Solder · Chemical · Laser Dust)

• Hassle-free easy-to-start operation with all inclusive kit supplied
• Easy-to-manoeuver positioning of Fumes Extraction Arms
• Reliable & virtually maintenance-free Brushless DC Turbine
• Has low noise (< 55 dBA) in continuous operation
• Filters design removes hazardous gaseous/adhesive substances from fumes.
• Low running cost as normally low cost Pre-Filter mainly need periodic replacement and when there is choking.
• Readily availability of all spare parts as we keep enough stocks of the same all the time

• Input Power Supply : 230V/50Hz, 120W
• No of Workplaces    : 1
• Stationary Pressure : 2400 Pa
• Maximum Airflow Rate : 120m3/h
• Filtering Efficiency (0.3um) : 99.97%
• Noise Level : <55dB*
  * at distance of 1 meter & also at typical speed of turbine

• 1 x FumePro101 Main Extraction Unit
• 1 x Extraction Arms (50mm diameter, 1 meter long)
• 1 x Round Fume Absorbing Hood (105mm diameter)
• 1 x Speed Control Regulator
• 2 x Spare Pre-Filters

The FumePRO101-50LC is a high-performance solder fume extraction system designed for use in industrial settings where soldering and other electronic assembly processes are performed. It is capable of extracting fumes generated during soldering operations from up to two workstations simultaneously.

The system features a powerful suction motor that provides a maximum airflow rate of 120 cubic meters per hour (m³/hrs) and a maximum static pressure of 2400 pascals (Pa). This ensures that fumes are effectively captured and removed from the work area, protecting workers from harmful airborne contaminants.

The FumePRO101-50LC includes one extraction arm with a length of 1 meters, which can be easily adjusted to the desired position. The arms are made of flexible material that allows for easy positioning and movement, ensuring that fumes are effectively captured regardless of the position of the workpiece.

The system features a multi-stage filtration system, consisting of a pre-filter, a HEPA filter, and an activated carbon filter. The pre-filter captures larger particles, while the HEPA filter captures particles as small as 0.3 microns, ensuring that even the smallest particles are removed from the air. The activated carbon filter effectively removes harmful gases and odors, ensuring that the air in the workspace is clean and safe to breathe.

The FumePRO101-50LC is equipped with a digital control panel that allows users to adjust the airflow rate and monitor the system's performance. The system also includes an automatic filter status indicator that alerts users when the filters need to be replaced, ensuring that the system always operates at maximum efficiency.

In summary, the FumePRO101-50LC is a powerful and effective solder fume extraction system that is capable of removing harmful airborne contaminants. Its multi-stage filtration system, flexible extraction arm, and digital control panel make it an ideal choice for industrial settings where soldering and electronic assembly processes are performed.

• Hassle-free easy-to-start operation with all inclusive kit supplied
• Easy-to-manoeuver positioning of Fumes Extraction Arms
• Reliable & virtually maintenance-free Brushless DC Turbine
• Has low noise (< 60 dBA) in operation continuous running
• Filters design removes hazardous gaseous/adhesive substances from fumes.
• Low running cost as normally low cost Pre-Filter mainly need replacement periodically as and when there is choking of fumes extraction.
• Readily availability of all spare parts from stock

• Input Power Supply : 230V/50Hz, 250W
• No of Workplaces : 2
• Stationary Pressure : 3000 Pa
• Maximum Airflow Rate: 240m³/h
• Filtering Efficiency (0.3um) : 99.97%
• Noise Level : <60dB
• Dimension (L x W x H) (approx) : 470 x 230 x 500mm

• 1 x ESD Safe Black Colour Main Unit
• 2 x ESD Safe Extraction Arms (75mm diameter, 1.2 meter long)
• 2 x Burn proof Round Silicon Rubber Hoods
• 1 x Speed Control Regulator
• 2 x Spare Pre-Filters

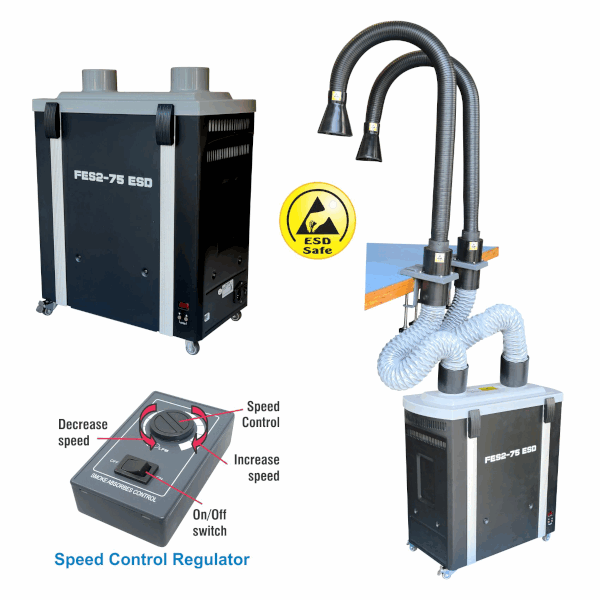

The FES2-75ESD-LC is a high-quality and powerful solder fumes extraction system that is specifically designed for industrial settings where soldering and other electronic assembly processes take place. This system is capable of extracting fumes from up to two workstations simultaneously, making it an ideal choice for multi-operator workstations.

With a powerful suction motor, the FES2-75ESD-LC provides a maximum airflow rate of 75 cubic meters per minute (m³/min) and a maximum static pressure of 3000 pascals (Pa). This ensures that fumes are effectively captured and removed from the work area, protecting workers from harmful airborne contaminants that can cause respiratory problems.

The FES2-75ESD-LC comes equipped with two flexible extraction arms, each measuring 1.5 meters in length. The arms can be easily adjusted to the desired position, ensuring that fumes are effectively captured regardless of the position of the workpiece. Additionally, the arms are made of conductive material that safely dissipates any electrostatic discharge generated during the soldering process.

The system's multi-stage filtration system consists of a pre-filter, HEPA filter, and activated carbon filter. The pre-filter captures larger particles, while the HEPA filter captures particles as small as 0.3 microns. This ensures that even the smallest particles are removed from the air. The activated carbon filter effectively removes harmful gases and odors, ensuring that the air in the workspace is clean and safe to breathe.

It is designed for continuous and reliable working on production line. Its powerful and maintenance-free brushless turbine combined with electronic speed control, provides clean working environment at low maintenance cost. The electronic Speed Controller regulates air-flow volume continuously.

The FES2-75ESD-LC is equipped with a digital control panel that allows users to adjust the airflow rate and monitor the system's performance. The system also includes an automatic filter status indicator that alerts users when the filters need to be replaced, ensuring that the system always operates at maximum efficiency.

3-stage Filters: Pre-Filter, Middle Filter and HEPA Filter. /Charcoal Combination of these Filters cleans polluted air by separating 99.9% contaminated solder fumes. This System is designed for use both in industrial and laboratory environment. All it needs is mains input Power Supply only.

In summary, the FES2-75ESD-LC is a high-quality solder fumes extraction system designed for industrial settings where soldering and electronic assembly processes are performed. Its powerful suction motor, conductive extraction arms, multi-stage filtration system, and digital control panel make it an ideal choice for protecting workers from harmful airborne contaminants.

• Hassle-free easy-to-start operation with all inclusive kit supplied
• Easy-to-manoeuver positioning of Fumes Extraction Arms
• Reliable & virtually maintenance-free Brushless DC Turbine
• Has low noise (< 60 dBA) in operation continuous running
• Specially designed Filters to remove hazardous gaseous/adhesive substances from fumes
• Low running cost as normally low cost Pre-Filter mainly needs replacement periodically as and when there is choking in fumes extraction
• Readily availability of all spare parts from stock

• Input Power Supply : 230V/50Hz, 250W
• No of Workplaces    :  2
• Stationary Pressure  : 3000 Pa
• Maximum Airflow Rate : 240m3/h
• Filtering Efficiency (0.3um)  : 99.97%
• Noise Level :  <60dB*
• Dimension (L x W x H) (approximately)  : 470 x 230 x 500mm
  * at distance of 1 meter & also at typical speed of turbine

• 1 x ESD Safe Black Colour Main unit
• 2 x ESD Safe Extraction Arms (75mm dia, 1.0 meter long)
• 2 x Bench Clamps
• 2 x Soft Connection Hose
• 2 x Square Metallic Hoods (180x180mm)
• 1 x Speed Control Regulator
• 5 x Spare Pre-Filters

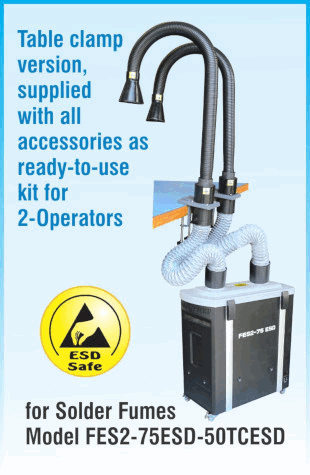

The FES2-75ESD-TC is a high-quality and powerful solder fumes extraction system that is specifically designed for industrial settings where soldering and other electronic assembly processes take place. This system is capable of extracting fumes from up to two workstations simultaneously, making it an ideal choice for multi-operator workstations.

With a powerful suction motor, the FES2-75ESD-TC provides a maximum airflow rate of 240 cubic meters per hour (m³/hrs) and a maximum static pressure of 3000 pascals (Pa). This ensures that fumes are effectively captured and removed from the work area, protecting workers from harmful airborne contaminants that can cause respiratory problems.

The FES2-75ESD-TC comes equipped with two Soft Connection Hoses, two Bench Clamps and two flexible extraction arms (1.0 meter long each) and fitted with Square Metallic Hoods of 180x`180mm. The arms can be easily adjusted to the desired position, ensuring that fumes are effectively captured regardless of the position of the workpiece. Additionally, the arms are made of conductive material that safely dissipates any electrostatic discharge generated during the soldering process.

The system's multi-stage filtration system consists of a pre-filter, HEPA filter, and activated carbon filter. The pre-filter captures larger particles, while the HEPA filter captures particles as small as 0.3 microns. This ensures that even the smallest particles are removed from the air. The activated carbon filter effectively removes harmful gases and odors, ensuring that the air in the workspace is clean and safe to breathe.

It is designed for continuous and reliable working on production line. Its powerful and maintenance-free brushless turbine combined with electronic speed control, provides clean working environment at low maintenance cost. The electronic Speed Controller regulates air-flow volume continuously.

The FES2-75ESD-TC is equipped with a digital control panel that allows users to adjust the airflow rate and monitor the system's performance. The system also includes an automatic filter status indicator that alerts users when the filters need to be replaced, ensuring that the system always operates at maximum efficiency.

3-stage Filters: Pre-Filter, Middle Filter and HEPA Filter. /Charcoal Combination of these Filters cleans polluted air by separating 99.9% contaminated solder fumes. This System is designed for use both in industrial and laboratory environment. All it needs is mains input Power Supply only.

In summary, the FES2-75ESD-TC is a high-quality solder fumes extraction system designed for industrial settings where soldering and electronic assembly processes are performed. Its powerful suction motor, conductive extraction arms, multi-stage filtration system, and digital control panel make it an ideal choice for protecting workers from harmful airborne contaminants.
