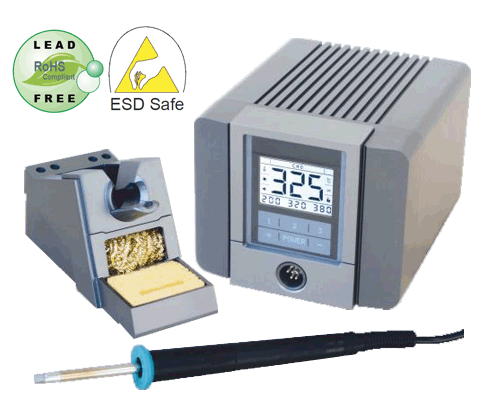

120 Watt Ultra Fast Soldering Station
Ultra Fast Thermal Recovery Soldering Station
Model: DSSLF120ESD-UF
The DSSLF120ESD-UF is an Utra-fast, 120 Watt soldering station for soldering at lower temperature of sensitive Aerospace Ceramic Substrates Circuits, Monocrystalline PV Solar Panels and fine pitch leadfree type SMD soldering. 3 Optimized Process Temperatures for on-line production use can be pre-programmed.
Features
- Power/Control unit has in-built following features:
- Touch Button Control Panel
- Password Protection
- In-built Temperature Calibration
- Sleep Time Mode for longer life
- Error Message indication
- 1-Touch Temperature Recalling - Reliable Heating Element lowers production running cost
- New VERY longer life Soldering Tips lowers production cost
- Normally IMMEDIATE delivery of Spare Parts to to keep investment productive
Specifications
- Power : 120 Watt, 220V/50Hz
- Temperature Range : 200°C ~ 420°C
- Temperature Stability : ±2% of final value
- Tip to Ground Resistance : <2Ω
- Tip to Ground Potential : <2mV
- Dimensions(LxWxH) : 137 x 165 x 114mm (approx.)
Scope of Supply
- DSSLF120ESD-UF Power & Control Unit
- Soldering Pencil fitted with Soldering Tip
- Support Rack with Dry Cleaner & Cleaning Sponge
SOLDERING STATION DSSLF120ESD-UF
The Ultra Fast Thermal Recovery INDE Soldering Station DSSLF120ESD-UF is a professional-grade soldering station designed for use in electronic assembly, repair, and production environments especially for Aerospace Industry. This soldering station features an ultra-fast thermal recovery system that allows the soldering tip to quickly return to its set temperature after soldering, ensuring maximum productivity and efficiency. Combination of these two, allows soldering at lower temperature to avoid any thermal damage of expensive SMD ICs as well as provides higher reliability of solder joints as is normally required in aerospace application.
Model DSSLF120ESD-UF Soldering Station is the best value-for-money in place of investing in 3 to 4 Soldering Stations as this one single Soldering Station is adequate to achieve similar production rate because of its very fast thermal recovery and higher heating power.
The DSSLF120ESD-UF is equipped with an intelligent microprocessor-controlled temperature system that accurately maintains the soldering tip temperature within a range of ±1°C. The temperature is adjustable from 200°C to 420°C (392°F to 932°F) to accommodate a wide range of soldering applications.
The soldering station's compact design includes a digital LCD display that shows the set temperature and the actual temperature of the soldering tip. It also features an ESD-safe design, which helps to protect sensitive electronic components from electrostatic discharge.
The soldering station comes with a high-quality, durable soldering iron that has a ceramic heating element for fast and efficient heating. The iron's ergonomic design provides a comfortable grip and allows for easy soldering of even the most intricate electronic components.
Other features are: in-built Temperature Off-Set for Digital Calibration to meet ISO 9000 requirements; in-built function of Auto-Sleep and Auto Shut-Off (gets activated automatically) ensures longer life of Heating Element and Soldering Tips. Supervisor can lock all 3 optimized process temperatures to ensure operators cannot change the same. Wide range of Soldering Tips in different shapes and width, as required for different soldering applications, are readily available.
Overall, the Ultra Fast Thermal Recovery INDE Soldering Station DSSLF120ESD-UF is a reliable and high-performance soldering station that is suitable for use in a variety of electronic soldering applications. Its fast thermal recovery time, accurate temperature control, and ESD-safe design make it a popular choice for professional electronics technicians and hobbyists alike.
Ultra-Fast Thermal Recovery 120 Watt Soldering Station
Model: DSSLF120
The DSSLF120 is a unique soldering station for leadfree, fine pitch SMD Chips, Solar Panels and Hi-Power automotive & other components. This soldering station comes with lightweight soldering pencil and easy-to-replace plug-in type heating element. It is ultra-fast thermal recovery 120 Watt soldering station designed for lead-free, fine pitch SMD chips, solar panels, and high-power automotive components.
Features
- In-built temperature Off-Set feature for calibration from panel itself to meet ISO 9000 requirements
- 2 Auto-Sleep and Auto-Shut-Off features get activated after pre-set time.
- 3 Supervisory process temperature lock feature: operators cannot change it.
- High production rate with high reliability in solder joints
- Lower production cost with higher life of Soldering Tips
- Very light weight Soldering Pencil for Operator’s comfort
- Special Soldering Tips for Solar Panels & Fine Pitch SMD soldering
- Same Soldering Station suitable for heavy automotive parts soldering
- Add optional Solder Wire Feeding Station to increase operator’s productivity and to avoid solder wire wastage
Specifications
- Power : 120 Watts
- Input Supply : 220VAC, 50Hz
- Temperature Range : 100°C ~ 500°C
- Temperature Stability : ±2% of final value
- Tip to Ground Resistance : < 2 Ohm
- Tip to Ground Potential : <2mV
Scope of Supply
- Power & Control Unit
- Light Weight Soldering Pencil
- Soldering Tip 200G-2.4D
- Heavy Duty Support Rack
- Convetional Wet Cleaning Sponge
- Dry Metal Wool for Tip cleaning
SOLDERING STATION DSSLF120
The 120 Watt Soldering Station Model DSSLF120 is superior to 80 or 90 Watt soldering stations because of its faster thermal recovery time and optimal heat transfer to each joint. This results in higher reliability of solder joints and lower production costs due to the longer life of soldering tips. Additionally, the soldering station has various features that increase productivity and ease of use, such as the in-built temperature off-set feature for calibration, auto-sleep and auto-shut-off features, and a supervisory process temperature lock feature. It is suitable for multiple soldering applications, including solar cell soldering, lead-free fine pitch and SMD soldering, PTH soldering, and auto parts soldering.
Operators can also add an optional solder wire feeding station to further increase productivity and reduce solder wire wastage. The soldering station has been successfully used by automotive and solar panel manufacturers in India, with many repeat orders to INDE Enterprises.
