DSF76D Specifications and Details – INDE

Increases productivity of operators and saves money in solder wire

Today’s highly competitive and demanding industrial soldering applications need highest possible productivity of operators and every paisa must be saved for profitability. Such demanding requirements are met with Fast Thermal Recovery Digital Soldering Station with Auto Solder Feeder Model DSF76D. Affordably priced, it is the right choice. Besides making one hand of operator free, it also provides consistent quality for each solder joint as same amount of Solder wire with pre-programmed feeding is applied at optimized process temperature.

Note: Standard system comes with accessories for 0.8mm solder wire. For other dia. accessories will change. Please specify clearly solder wire size to be used. Choices are 0.6, 0.8, 1.0, 1.2mm. Also, Solder wire roll is not a part of supply


Salient Features:

  • Control Unit with close loop precise PID temperature control.
  • Solder feed length, speed and time programming switches.
  • Digital display of temperatures.
  • Pushbuttons for precise temperature control.
  • Leadfree Operation.


Scope of Supply:

  • Main Controller & Feeder
  • Unit Soldering Pencil with Wire Feeding attachment
  • 3.2 mm Chisel Soldering Bit
  • Soldering Pencil Holder



  • Temperature Range :  200°C ~ 480°C
  • Temperature Stability : ± 2% of final value
  • Tip to Ground Resistance : <2mV
  • Tip to Ground Potential :
  • Input Supply : 230VAC, 50 Hz
  • Feeding Speed : About 2.7mm/s~27mm/s
  • Feeding Interval Time : 0~2.7s
  • Feeding Length : 0~150mm
  • Returning Time : 0~0.9s
  • Feeding Mode : Auto (1~9) / Manual (0)
  • Diameter of Solder Wire : Either of 0.6, 0.8, 1, 1.2 mm
  • Weight for Solder Wire :  <1Kg (Roll)



  • High Mass Power Transistors Soldering
  • Solar Cell Soldering
  • High Mass Heat Sink and Coil Soldering on PCBs
  • High Mass Automobile Parts Soldering
  • High Mass Film Capacitor Soldering
  • High Mass Earth Thimbles Soldering



  • High frequency fast heating and rapid thermal recovery ensure defect free leadfree soldering.
  • Precise temperature settings by keys
  • In-built calibration offsets & auto-sleep
  • Adjustable feeding speed of solder wire
  • Adjustable feeding length of solder wire
  • Adjustable interval time & returning time


Soldering Station with Model DSF76D

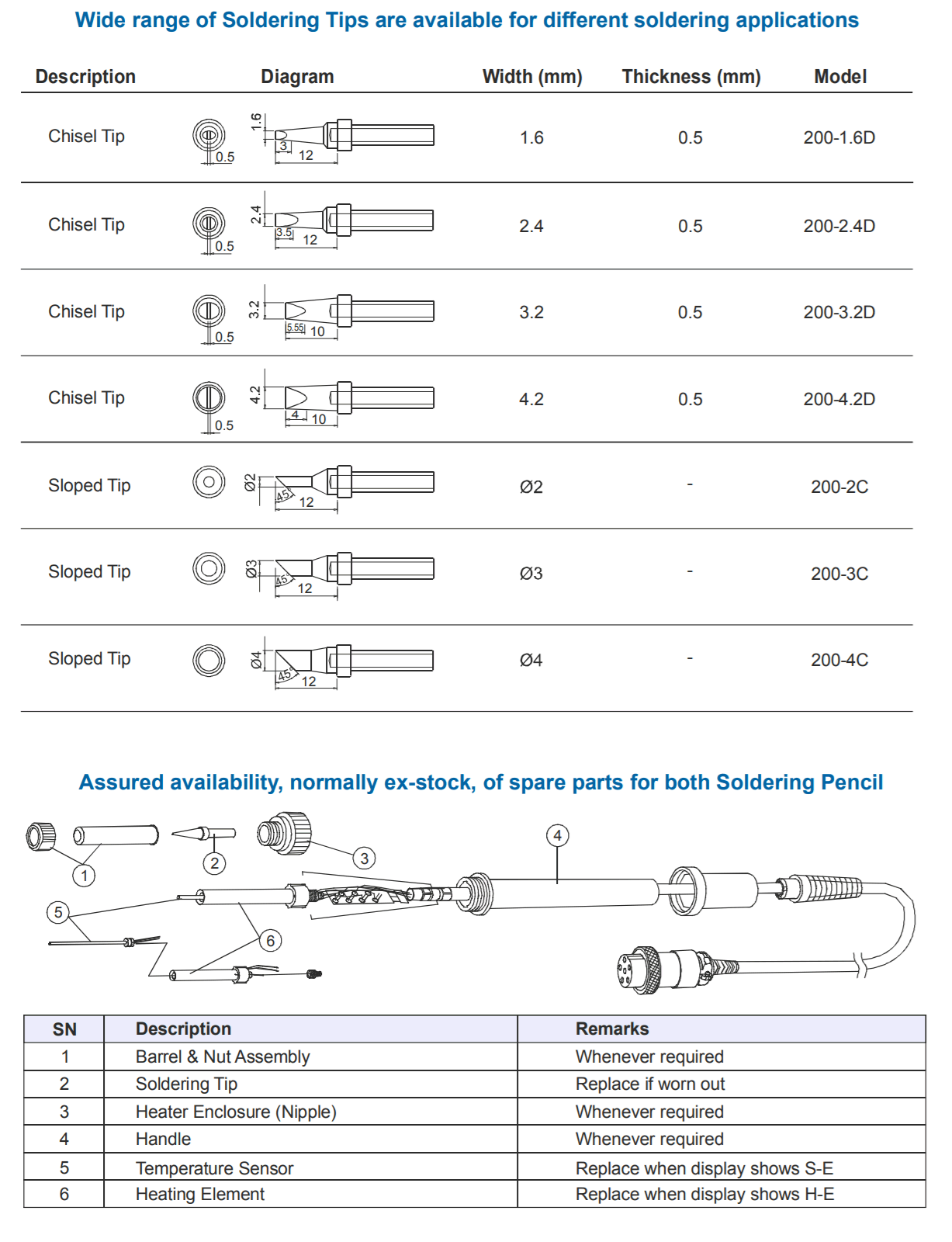

Soldering Station with Model DSF76D - Soldering Tips


  • Warranty is 12 months from the date of invoice. It excludes all consumable parts as Heating Elements, Temperature Sensors, Soldering/Desoldering/Hot Air Tips, Cleaning Sponges, Cleaning Brass Wool.
  • Assured availability, normally ex-stock, of Spare Parts for Soldering Pencil.
